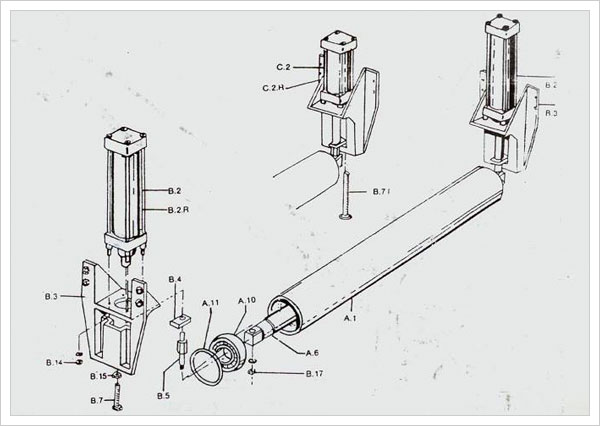

| Pressure Roller Assembly |
| |
 |
| |
| Pos. No. on Drg. |
Part No. |
|
Description |
|
|
|
|
| A.1 |
4R 12013 |
|
Roller / 98 |
| |
4R 228748 |
|
Roller / 98 |
| |
4R 228750 |
|
Roller / 98 |
| A.6 |
3R 12027 |
|
Shaft |
| |
3R 228747 |
|
Shaft |
| |
3R 228749 |
|
Shaft |
| A.10 |
00.3431.783 |
|
Ball Bearing |
| A.11 |
00.0371.090 |
|
Internal Circlip |
| B.2 |
4R 326810 |
|
Air Cylinder |
| B.2.R |
3648926810 |
|
Spare Kit for Air |
| |
|
|
Cylinder 4R 326810 |
| B.3 |
2R 228731 |
|
Bracket |
| B.4 |
5R 221888 |
|
Plate |
| B.5 |
4R 325351 |
|
Pin |
| B.7 |
4R 325352 |
|
Adjusting Bolt |
| B.14 |
10.0163.004 |
|
Nylock Nut |
| B.15 |
10.0189.003 |
|
Nut |
| B.17 |
10.0189.003 |
|
Nylock Nut |
| C.2 |
4R 228810 |
|
Air Cylinder |
| C.2.R |
3648928810 |
|
Spare Kit for Air |
| |
|
|
Cylinder 4R 228810 |
|
|
