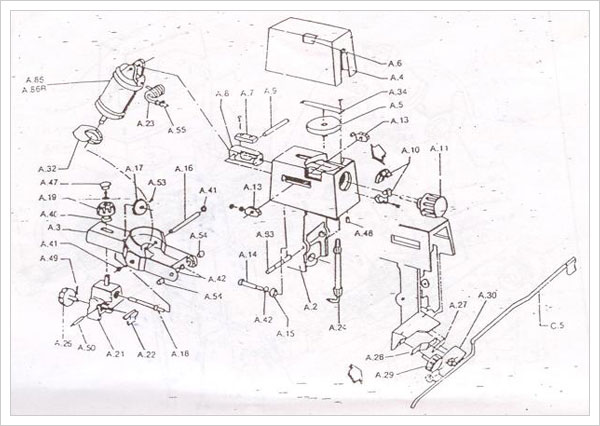

| Pos. No. on Drg. |
Part No. |
Description |
|
|
|
| A.2 |
1R 328891 |
Housing |
| A.3 |
1R 327081 |
Lever |
| A.4 |
1R 328777 |
Cover |
| A.5 |
3R 327085 |
Vernier Scale |
| A.6 |
4R 328778 |
Plate |
| A.7 |
4R 327086 |
Toothed Rack |
| A.8 |
4R 327087 |
Fork |
| A.9 |
4R 327088 |
Pin |
| A.10 |
4R 328713 |
Bearing (Half) |
| A.11 |
3R 327642 |
Knob |
| A.13 |
4R 327090 |
Slide Block |
| A.14 |
4R 327091 |
Screw |
| A.15 |
4R 327092 |
Cone |
| A.16 |
4R 327093 |
Shaft |
| A.17 |
4R 327094 |
Knob |
| A.18 |
4R 327095 |
Shaft |
| A.19 |
4R 327627 |
Knob |
| A.20 |
4R 327097 |
Ring |
| A.21 |
3R 327106 |
Holder |
| A.22 |
4R 327105 |
Ratchet |
| A.23 |
4R 327100 |
Hose |
| A.24 |
4R 327101 |
Hose |
| A.26 |
4R 327528 |
Knob |
|
|
| Pos. No. on Drg. |
Part No. |
Description |
|
|
|
| A.27 |
4R 327065 |
Spring |
| A.28 |
3R 328432 |
Support |
| A.29 |
4R 327064 |
Knob Button |
| A.30 |
4R 327063 |
Support |
| A.32 |
4R 327137 |
Cover |
| A.33 |
4R 327440 |
Shaft |
| A.34 |
4R 327618 |
Holder |
| A.40 |
00.1783.017 |
Spring |
| A.41 |
00.0370.012 |
Lock Washer |
| A.42 |
00.0372.012 |
Lock Washer |
| A.47 |
00.0633.328 |
Plug |
| A.48 |
00.0490.086 |
Pin |
| A.49 |
00.0414.024 |
Pin |
| A.50 |
09.0100.117 |
Bush |
| A.53 |
00.0414.024 |
Pin |
| A.54 |
09.0100.117 |
Bush |
| A.55 |
00.2330.201 |
Coupling |
| A.86 |
4R 326871 |
Cylinder |
| A.86R |
4R 328577 |
Spare Parts for Cylinder 4R 326871 |
| C.5 |
2R 327067 |
Level Control
Electrode |
|
