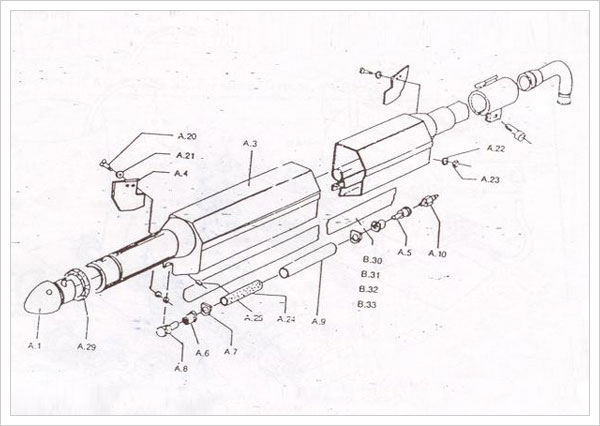

Squeegee Assembly ( Dye Stuff Supply Pipe )     Pos. No. on Drg. Part No. Description A.1 4R 329300 Closing Plug A.3 4R 333007 Squeegee Pipe suitable to Print 1280 HM Width on 1280 mm Size Machine   4R 333008 Squeegee Pipe suitable to Print 1280 mm Width on 1850 mm Size Machine   4R 333011 Squeegee Pipe suitable to Print 1620 mm Width on 1620 mm Size Machine   4R 333010 Squeegee Pipe suitable to Print 1850 mm Width on 1850 mm Size Machine A.4 4R 325418 End Scraper A.5 4R 2126 SIL Conical Bush or 4R 325387 A.6 4R 325388 Nut A.7 4R 325389 Bush A.8 4R 325390 Conical Bush A.9 4R 325441 Clamping Pipe   Pos. No. on Drg. Part No. Description A.10 4R 2238 SIL Valve or 4R 325472 A.20 00 0278 599 Cheesel Headed Screw A.21 00 0350 206 Washer A.22 00 0353 103 Spring Headed A.23 00 0185 067 Nut A.24 09 0450 431 Hose Type GGO70 1.3 RM Long Hose Type GGO70 1.7 RM Long Hose Type GGO70 1.9 RM Long A.25 00 0300 743 Grub Screw A.29 00 2173 311 (or) SILS 251 O Ring B.30 09 0700 120 Squeegee Blade 40 mm x 0.10 mm Thick B.31 09 0700 130 Squeegee Blade 40 mm x 0.15 mm Thick B.32 09 0700 135 Squeegee Blade 40 mm x 0.20 mm Thick B.33 09 0700 138 Squeegee Blade 45 mm x 0.15 mm Thick B.34 09 0700 139 Squeegee Blade 45 mm x 0.20 mm Thick B.35 09 0700 140 Squeegee Blade 50 mm x 0.15 mm Thick B.36 09 0700 145 Squeegee Blade 55 mm x 0.20 mm Thick
