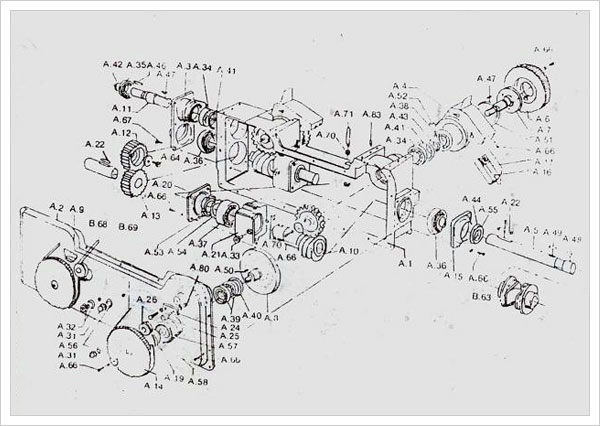

| Pos. No. on Drg. |
Part No. |
Description |
|
|
|
| A.1 |
1R 326761 |
Gear Box Casing |
| A.2 |
2R 326762 |
Gear Box Cover |
| A.3 |
3R 326763 |
Coer |
| A.4 |
3R 326764 |
Cover for Gear |
| A.5 |
3R 322622 |
Shaft |
| A.6 |
3R 326765 |
Gear Wheel |
| A.7 |
3R 326766 |
Journal |
| A.8 |
3R 326767 |
Wheel for Repeat |
| |
|
Adjustment |
| A.9 |
3R 326768 |
Wheel for repeat |
| |
|
Adjustment |
| A.10 |
4R 326769 |
Worm and Worm |
| |
|
Wheel |
| A.11 |
4R 326772 |
Shaft |
| A.12 |
4R 326773 |
Gear Wheel |
| A.13 |
4R 320216 |
Gear Wheel |
| A.14 |
4R 328370 |
Pulley |
| A.15 |
4R 326775 |
Cover |
| A.16 |
4R 326776 |
Strip |
| A.17 |
4R 327914 |
Brake |
| A.19 |
4R 327512 |
Ring |
| A.20 |
4R 220155 |
Cover |
| A.21 |
4R 220156 |
Bearing Housing |
| A.22 |
M 40642 |
Key |
| A.24 |
4R 326807 |
Strip |
| A.25 |
4R 326808 |
Shaft |
| A.26 |
4R 326809 |
Roll |
| A.31 |
10.0625.004 |
Plug |
| A.32 |
00.2712.030 |
Gauge Glass |
| A.33 |
00.3425.972 |
Roll |
| A.34 |
00.3431.765 |
Ball Bearing |
| A.35 |
00.3431.753 |
Ball Bearinr |
| A.36 |
00.3431.174 |
Ball Bearing |
| A.37 |
00.3431.669 |
Ball Bearing |
|
|
| Pos. No. on Drg. |
Part No. |
Description |
|
|
|
| A.38 |
00.3431.754 |
Ball Bearing |
| A.39 |
00.3431.446 |
Ball Bearing |
| A.40 |
00.0371.055 |
Lock Washer |
| A.41 |
00.0371.062 |
Lock Washer |
| A.42 |
00.0370.030 |
Lock Washer |
| A.43 |
00.0370.035 |
Lock Washer |
| A.44 |
00.2234.173 |
Sealing Ring |
| A.46 |
00.0502.232 |
Key |
| A.47 |
00.0502.035 |
Key |
| A.48 |
00.0502.045 |
Key |
| A.49 |
00.0502.048 |
Key |
| A.50 |
00.0502.306 |
Key |
| A.51 |
00.0370.080 |
Lock Washer |
| A.52 |
00.2653.256 |
Grease Nipple |
| A.53 |
00.0243.009 |
Nut |
| A.54 |
00.0383.009 |
Lock Washer |
| A.55 |
09.0100.143 |
Ring |
| A.56 |
00.2150.558 |
Sealing Ring |
| A.57 |
00.2173.211 |
Ring |
| A.58 |
00.2173.320 |
Ring |
| A.64 |
10.0143.025 |
Bolt |
| A.66 |
10.0251.026 |
Screw |
| A.67 |
10.0251.042 |
Screw |
| A.69 |
10.0189.004 |
Nut |
| A.70 |
09.0600.038 |
Nut |
| A.71 |
10.0302.035 |
Screws |
| A.80 |
00.0490.124 |
Nut |
| |
|
|
| B.63 |
4R 322591 |
Coupling |
| B.68 |
09.0200.045 |
Toothed Belt |
| B.69 |
09.0200.046 |
Toothed Belt |
|
