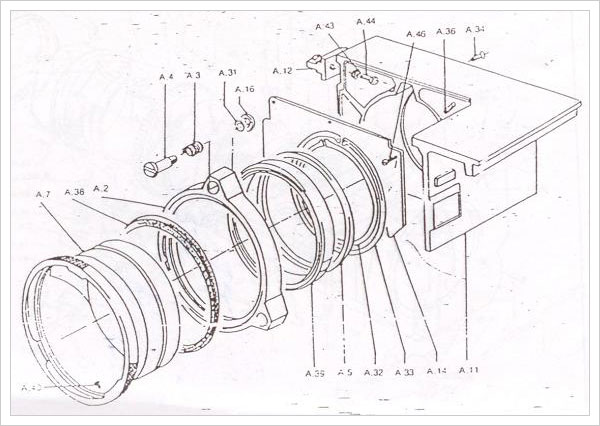

| Screen Head Pump Side |
| |
 |
| |
| Pos. No. on Drg. |
Part No. |
|
Description |
|
|
|
|
| A.2 |
2R 326935 |
|
Bearing Housing |
| A.3 |
4R 325839 |
|
Spring |
| A.4 |
4R 328126 |
|
Pin |
| A.5 |
4R 220245 |
|
Retaining Ring |
| A.7 |
3R 220255 |
|
Bearing Bush |
| A.11 |
4R 326937 |
|
Screen Head Body |
| A.12 |
4R 330527 |
|
Cam |
| A.14 |
3R 326929 |
|
Cover |
| A.16 |
4R 328505 |
|
Ring |
| A.31 |
09 0100 174 |
|
Retaining Ring |
| A.32 |
W 0384 260 |
|
Retaining Ring SW160 |
| A.33 |
W 0384 109 |
|
Retaining Ring SB183 |
| A.34 |
10 0254 023 |
|
CKS Slocket Head Screen |
| A.36 |
09 0600 425 |
|
Slotted Set Screw |
| A.38 |
00 2230 040 |
|
V.Ring (V-170) |
| A.39 |
00 3434 209 |
|
Ball Bearing Bolt |
| A.40 |
00 0278 589 |
|
Cheesel Headed Bolt |
| A.43 |
10 0353 004 |
|
Spring Washer |
| A.44 |
10 0143 001 |
|
Hex Bolt |
| A.46 |
00 0316 235 |
|
Self Tapping Screw |
|
|
