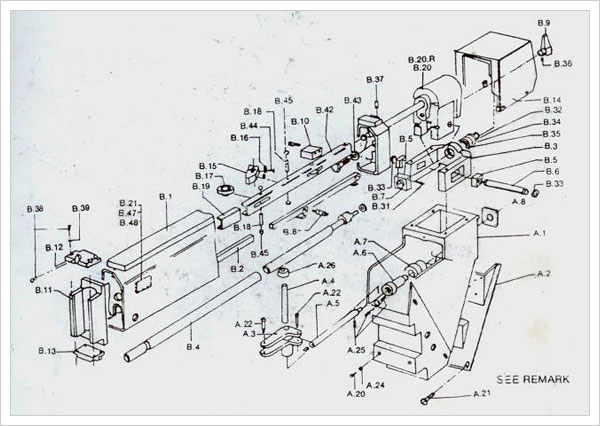

| Pos. No. on Drg. |
Part No. |
Description |
|
|
|
| A.1 |
1R 326974 (OR) |
Bracket |
| |
1R 2328 SIL |
Braket |
| A.2 |
3R 326975 |
Cover |
| A.3 |
4R 328527 |
Lever |
| A.4 |
4R 326977 |
Pin |
| A.5 |
4R 326978 |
Shaft |
| A.6 |
4R 326979 |
Socket |
| A.7 |
4R 326980 |
Brass Nut |
| A.8 |
4R 326981 |
Indication Plate |
| A.20 |
10.0251.058 |
Allen Cap Screw |
| A.21 |
10.0278.026 |
Chessl Headed Screw |
| A.22 |
4R 2080 SIL |
Special Allen Cap Screw |
| A.24 |
10.0353.006 |
Spring Washer |
| A.25 |
10.0411.001 |
Haamer Drive Screw |
| A.26 |
00.0950.304 |
Set Coller |
| B.1 |
2R 12021 |
Screen Beam |
| |
1R 331186 |
Screen Beam |
| |
1R 331187 |
Screen Beam |
| B.2 |
3R 12026 |
Air Pipe |
| |
2R 2114 SIL |
Air Pipe |
| B.3 |
2R 326902 |
Guide Block |
| B.4 |
3R 12024 |
Shaft |
| |
3R 327010 |
Shaft |
| |
4R 326963 |
Shaft |
| |
4R 2330 SIL |
Shaft |
| B.5 |
4R 326904 |
Disc |
| B.6 |
4R 326905 |
Pin |
| B.7 |
4R 326906 |
Dick |
| B.8 |
4R 322441 |
Quick Connect |
| |
|
Coupling |
| B.9 |
4R 326999 (OR) |
Knob |
| |
4R 2346 SIL |
Knob |
| B.10 |
4R 326968 |
Bearing Block |
| B.11 |
4R 326969 |
Holder |
| B.12 |
4R 328837 (OR) |
Cover Plate |
| |
4R 335915 |
Cover Plate |
|
|
| Pos. No. on Drg. |
Part No. |
Description |
|
|
|
| B.13 |
4R 326971 |
Cover Plate |
| B.14 |
2R 327034 |
|
| B.15 |
4R 326891 |
Cam |
| B.16 |
4R 326892 |
Flat Spring |
| B.17 |
4R 326893 |
Roller Wheel |
| B.18 |
4R 326894 |
Pin |
| B.19 |
3R 12092 |
U-Profile |
| |
3R 326915 |
U-Profile |
| |
3R326896 |
U-Profile |
| B.20 |
4R 328578 |
Spare Part for Air |
| |
|
|
| B.21 |
4R 327112 |
|
| B.31 |
00.0414.082 |
Spring |
| B.32 |
00.0370.015 |
External |
| B.33 |
00.0370.020 |
External |
| B.34 |
00.0371.035 |
Internal |
| B.35 |
00.3431.761 |
Ball Bearing |
| B.36 |
10.0300.006 |
Grew Screw |
| |
|
|
| Hear |
P.S is Pump Side |
|
| |
|
|
| B.21 |
09.0250.317 |
Air Valve |
| B.37 |
10.0302.015 |
Dogtail Grub Screw |
| B.38 |
10.0251.026 |
Allen Cap Screw |
| B.39 |
10.0351.002 |
Washer |
| B.42 |
10.0142.048 |
Hexbolt |
| B.43 |
10.0351.006 |
Washer |
| B.44 |
00.0138.135 |
S.S Hexbolt |
| B.45 |
09.0600.840 |
Locking |
| B.47 |
00.2330.231 |
Elbow |
| B.48 |
00.2330.002 |
Straight Coupling |
|
